*Special Order*

Step-Over & Step-Through Options

The Level 4 REC builds on Aventon’s legacy as a trusted, accessible commuter option, pairing a 750W hub motor with up to 75 miles of range for dependable, all-weather transportation. It’s built for riders who value simplicity, confidence, and everyday utility, offering strong acceleration for city streets, comfortable suspension for longer rides, and intuitive connectivity for security and peace of mind.

With its combination of power, practicality, and affordability, the Level REC is the perfect balance of comfort and capability for riders who just want a bike that works every time they need it.

GENERAL INFO:

• WEIGHT:  68.5lbs
• TOTAL WEIGHT LIMIT:  300 lbs
• RIDER HEIGHT:  Regular - 5'3"-5'10". || Large - 5'10"-6'4"
• EBIKE CLASS:  Class 2 (Convertible to Class 3)
• WATER RESISTANCE:  Bike - IPX5 // Components - IPX6
• RANGE:  Up to 75 Miles
• SAFETY CERTIFICATIONS
• UL Safety Certified
• UL 2849
• FRAME:  6061 Aluminum
• FORK:  80 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, Nutted Axle
• REAR SPACING:  148mm
• FORK SPACING:  100mm
• FRONT WHEEL:  27.5" Double Wall Aluminum, 36 Hole, 15x100mm Thru Axle
• REAR WHEEL:  27.5" Double Wall Aluminum, 750W Nutted Axle Hub Motor
• TIRES:  Kenda Kwick Seven-5 Sport 27.5"x2.2"
• MOTOR:  Hub Motor, 80Nm (96Nm in Boost Mode), 1188W Peak (1440W in Boost Mode)
• MOTOR TORQUE:  80Nm
• MOTOR POWER:  750W (1188W Peak)

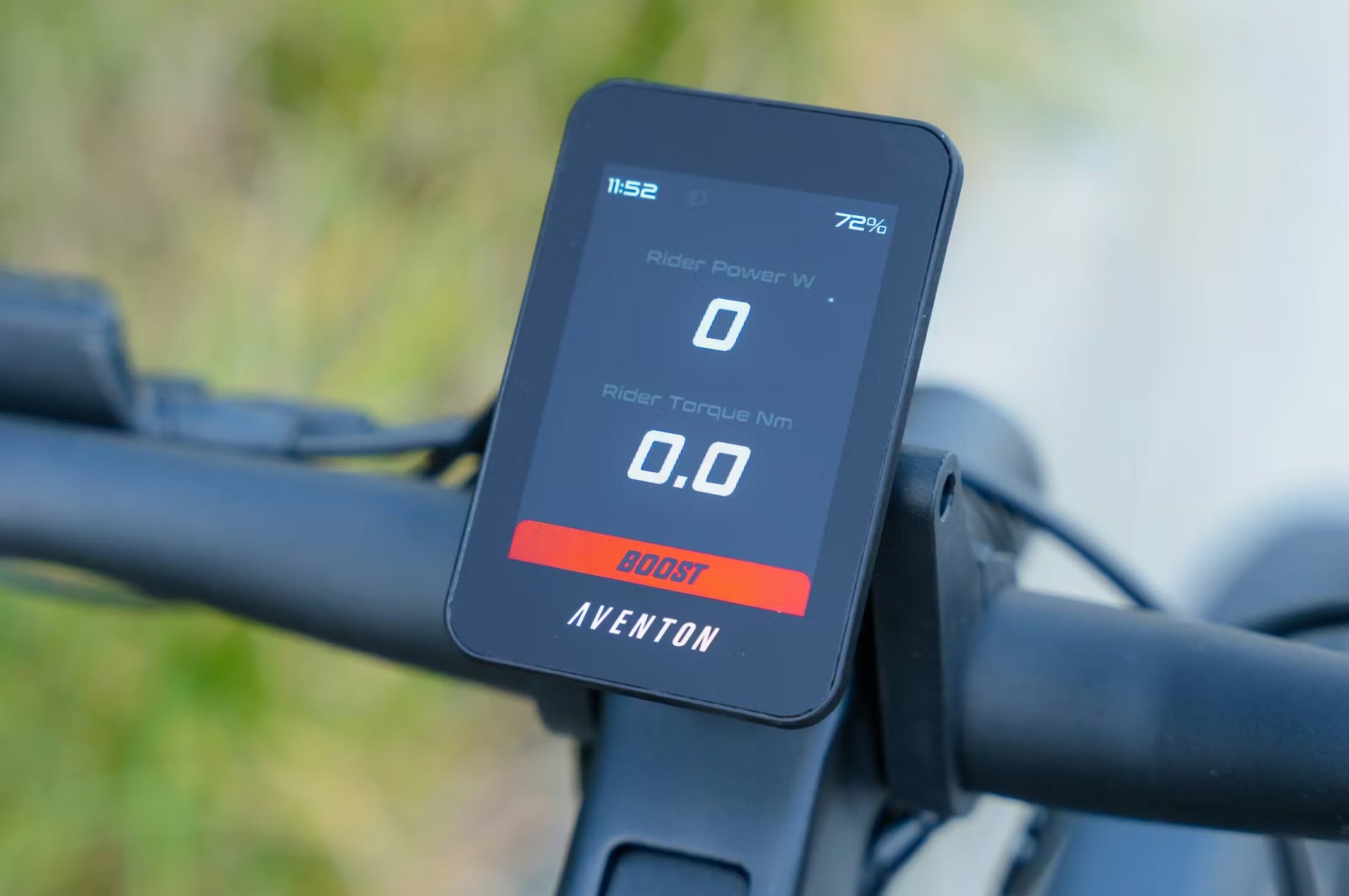

• DISPLAY:  Aventon A280
• BATTERY:  Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
• BATTERY WEIGHT: 8.7lbs
• CONTROLLER:  36V, 33A
• THROTTLE: Included
• SENSORS:  Sensor Switch Compatible (Cadence & Torque)
• CHARGER:  42V 4A charger
• CHARGING TIME FROM 0% TO 100%:  5 hours
• LIGHTS:  Front and rear lights integrated
• SMART FEATURES:  Regenerative Braking, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
• FRONT BRAKE:  Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
• REAR BRAKE:  Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
• FRONT BRAKE ROTOR:  180mm 6 bolt
• REAR BRAKE ROTOR:  180mm 6 bolt
• BRAKES:  Regenerative Braking
• REAR DERAILLEUR:  Shimano Altus RD-M310
• SHIFTER:  Shimano 8-Speed Trigger
• CHAIN: 7/8 speed 120L
• CASSETTE:  Shimano CS-HG200-8 8 speed Cassette, 12-32T
• CHAINRING: 48T
• CHAINRING BCD:  N/A
• CRANKSET: 165mm
• BOTTOM BRACKET:  Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
• PEDALS:  9/16" Composite Platform
• SADDLE:  Aventon Saddle
• SEATPOST:  30.9mm Aventon Suspension Seatpost with 50mm travel
• SEATPOST CLAMP:  34.9mm
• HANDLEBARS:  Aluminum 31.8mm, 680mm
• STEM: Aluminum, 31.8mm Clamp, 60mm Length, 90 Degree Adjustable w/ Internal Routing
• GRIPS:  Aventon Lock on grips
• INCLUDED ACCESSORIES:
• REAR RACK Included
• FENDERS: Included
• INTEGRATED LIGHTS

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
